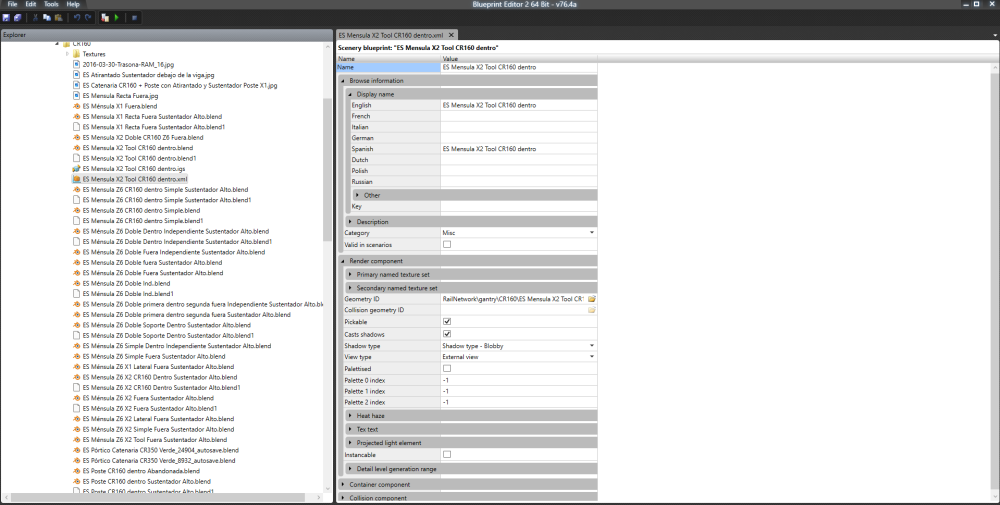

Trophies and Medals Ter160 4 Posted May 24 Share Posted May 24 (edited) Hello, good morning, I would like to know how to configure automatic placement, I imagine that it is done in the blueprint, I do not know what needs to be created in the blueprint editor 2 Screenshot: Edited May 24 by Ter160 Add screenshot Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/ Share on other sites More sharing options...
0 Trophies and Medals Sjef61 2,289 Posted May 24 Share Posted May 24 Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22167 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 25 Author Share Posted May 25 I understand that the thread is not automatic, it is created in blender along with the catenary, right? Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22171 Share on other sites More sharing options...
0 Trophies and Medals Sjef61 2,289 Posted May 25 Share Posted May 25 no idea what you mean. This is the blueprint that you need for the automatic installation of your overhead gantry . Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22172 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 So now I have the blueprint that you told me for automatic placement but it gives me an error Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22176 Share on other sites More sharing options...
0 Trophies and Medals Sjef61 2,289 Posted May 26 Share Posted May 26 what did you fill in bleuprint ID? change the text In field Name Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22177 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 15 minutes ago, Sjef61 said: what did you fill in bleuprint ID? change the text In field Name I don,t understand Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22178 Share on other sites More sharing options...

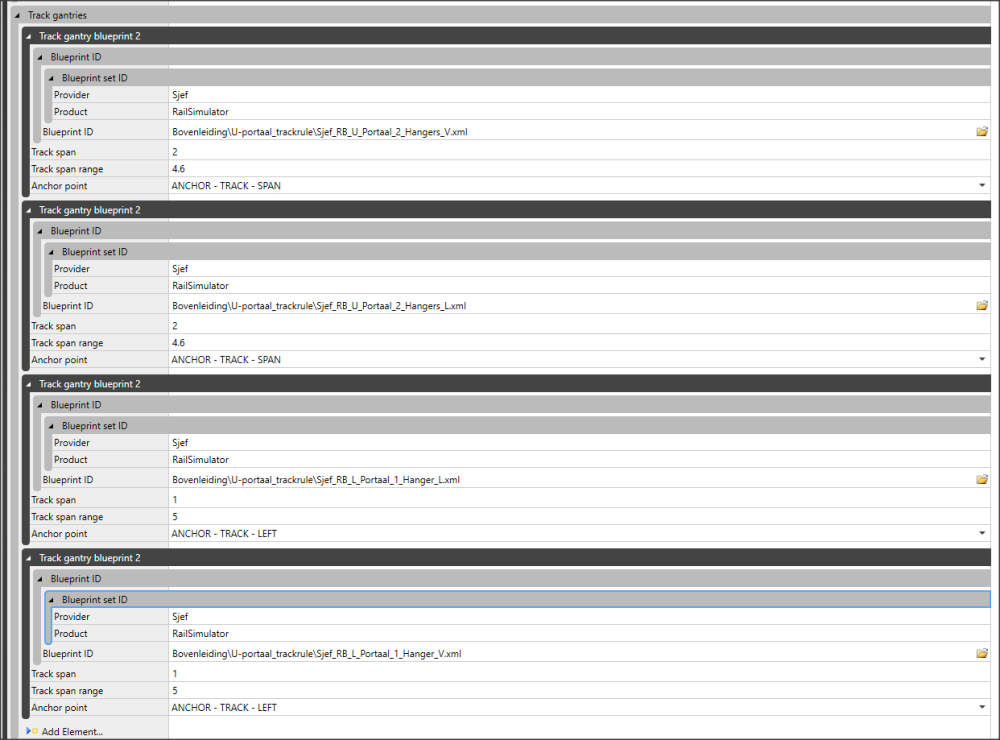

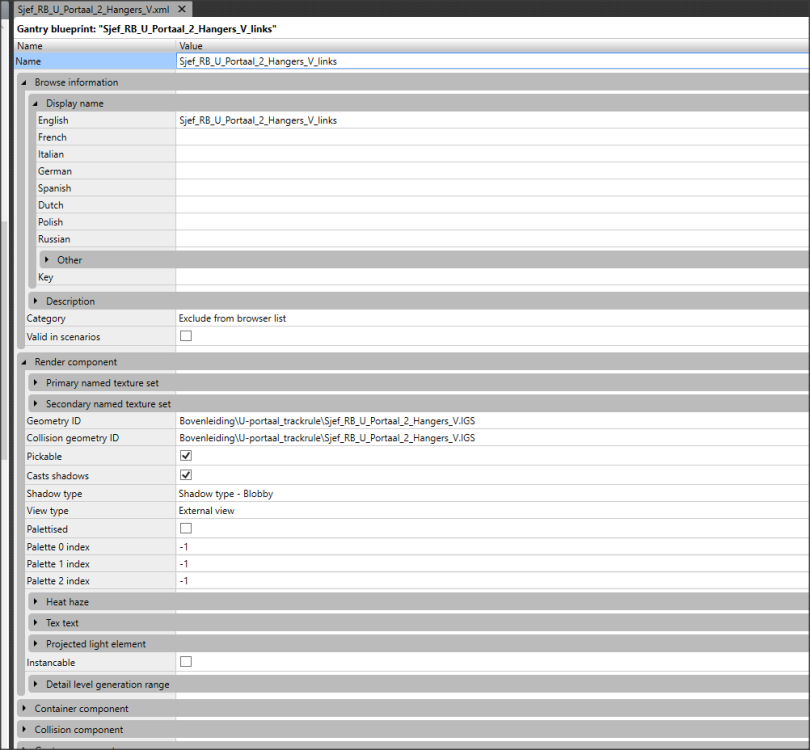

0 Trophies and Medals Sjef61 2,289 Posted May 26 Share Posted May 26 Change the name in your BP in the "Name" tab field Gantry type to be installed Example Gantry BP Auto Wire First choice example Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22179 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 Explain to me step by step all the screenshots since the Blueprint ID thing, I don't understand it Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22180 Share on other sites More sharing options...

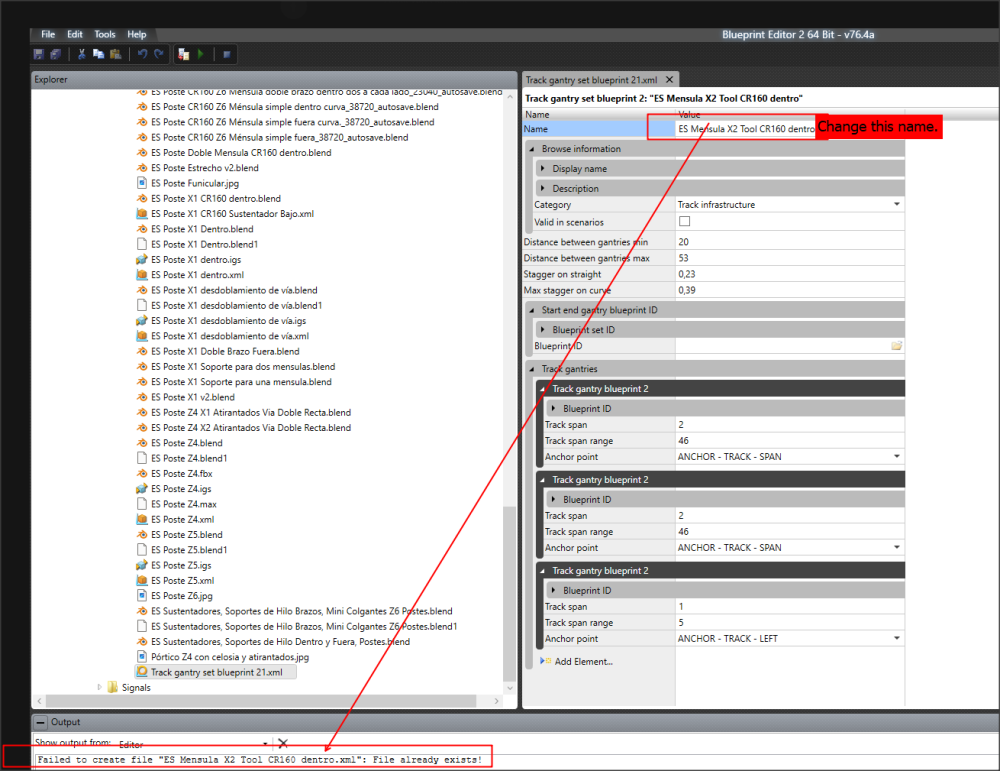

0 Trophies and Medals Sjef61 2,289 Posted May 26 Share Posted May 26 This name already exist so,,, Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22181 Share on other sites More sharing options...
0 Trophies and Medals Sjef61 2,289 Posted May 26 Share Posted May 26 Please show this detail information; Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22183 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 What I don't understand are the Blueprint IDs of the Catenary Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22184 Share on other sites More sharing options...
0 Trophies and Medals Sjef61 2,289 Posted May 26 Share Posted May 26 That are youre normal Gantry BP XML file’s I did explane you above already. Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22185 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 2 minutes ago, Sjef61 said: That are youre normal Gantry BP XML file’s I did explane you above already. Oh okay, I understand Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22186 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 The biggest problem is those 3 xml as well as the catenary thread Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22187 Share on other sites More sharing options...

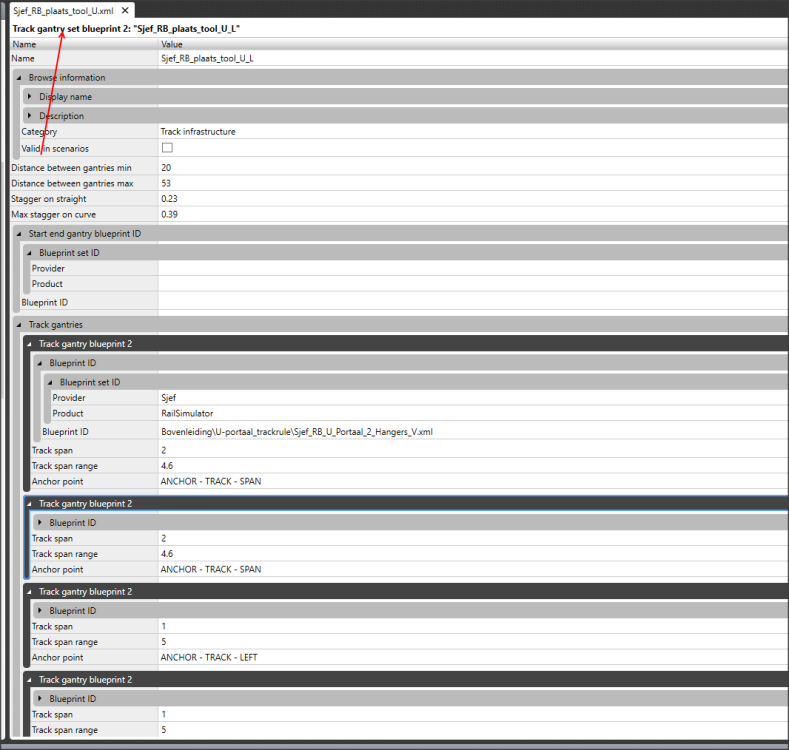

0 Trophies and Medals Sjef61 2,289 Posted May 26 Share Posted May 26 In the track gantry set BP example are 4 different gantry’s The overhead wire is a wire loft BP Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22188 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 1 minute ago, Sjef61 said: In the track gantry set BP example are 4 different gantry’s The overhead wire is a wire loft BP I suppose the catenary cable has to be created separately in blender as another mesh, right? Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22189 Share on other sites More sharing options...
0 Trophies and Medals Sjef61 2,289 Posted May 26 Share Posted May 26 Yes, it is a loft. Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22190 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 26 Author Share Posted May 26 3 minutes ago, Sjef61 said: Yes, it is a loft. The catenary is also a procedural object, so you have to create two blueprints, track gantry set blueprint and loft section blueprint, otherwise I'm wrong Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22191 Share on other sites More sharing options...

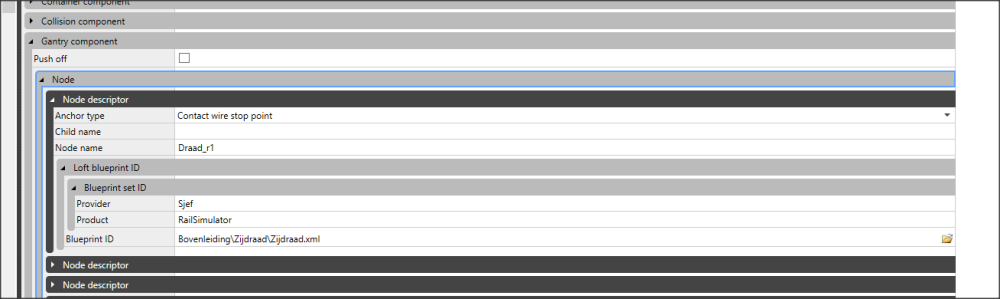

0 Trophies and Medals Sjef61 2,289 Posted May 27 Share Posted May 27 Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22202 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted May 29 Author Share Posted May 29 I don,t understand those screenshots Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22227 Share on other sites More sharing options...

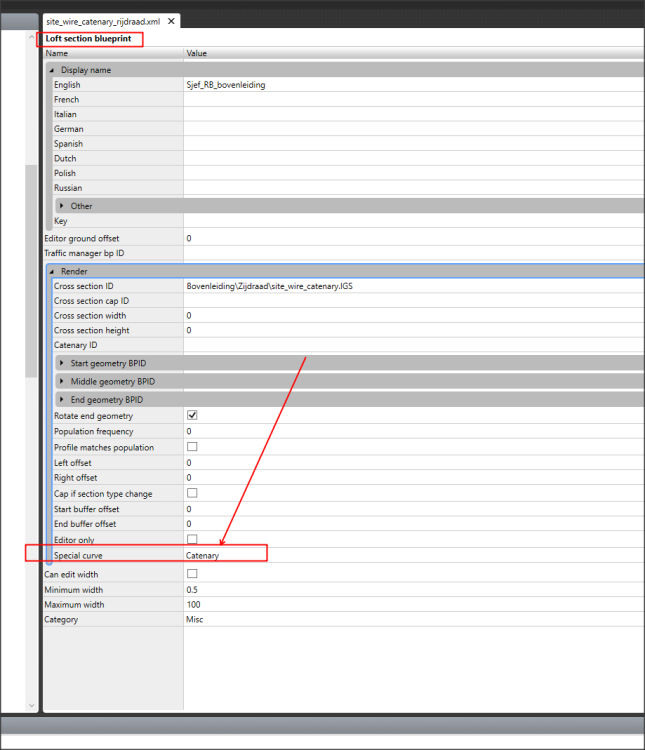

0 Trophies and Medals Sjef61 2,289 Posted May 29 Share Posted May 29 BP for loft wire. Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22229 Share on other sites More sharing options...

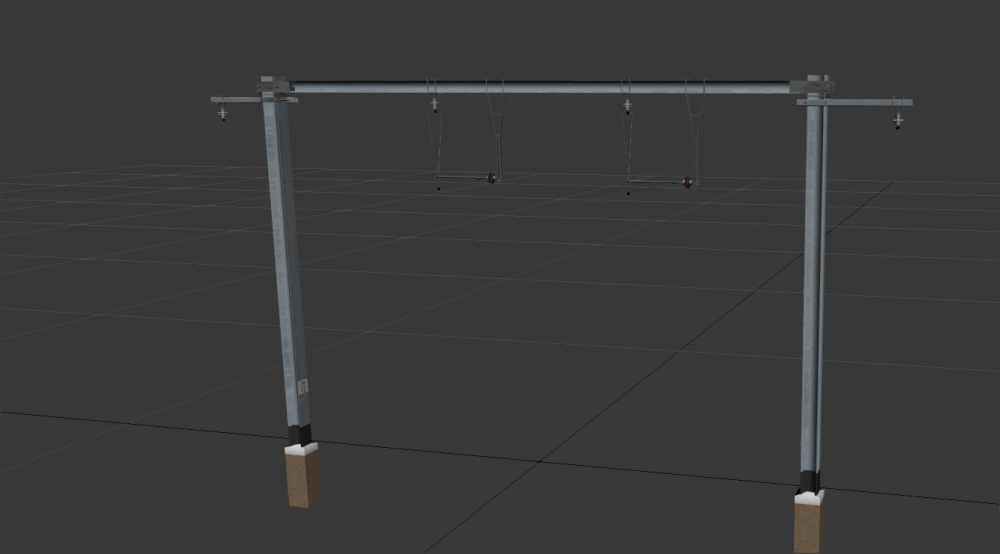

0 Trophies and Medals Ter160 4 Posted May 29 Author Share Posted May 29 1 minute ago, Sjef61 said: BP for loft wire. Catenary thread, but it doesn't have to be created on the ground, although I'm not sure about the second catch in blender Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22230 Share on other sites More sharing options...

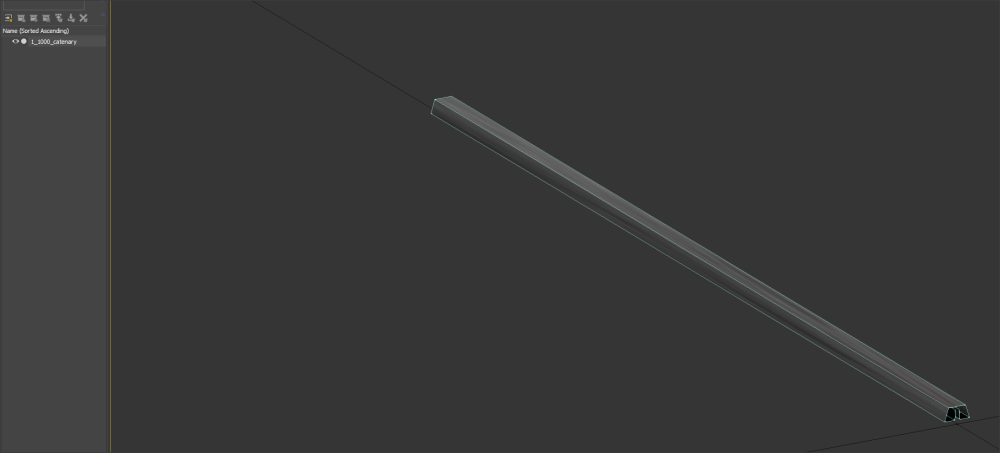

0 Trophies and Medals Sjef61 2,289 Posted May 29 Share Posted May 29 Must be created on the ground. name loft must be 1_1000_catenary Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22231 Share on other sites More sharing options...
0 Trophies and Medals Ter160 4 Posted June 7 Author Share Posted June 7 On 5/29/2024 at 5:51 PM, Sjef61 said: Must be created on the ground. name loft must be 1_1000_catenary I don,t understand 1 Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22271 Share on other sites More sharing options...
0 Trophies and Medals Sjef61 2,289 Posted June 7 Share Posted June 7 I have given you all the details and the BP examples. I don't know how else to explain it 1 Link to comment https://simtogether.com/forums/topic/2618-implement-automatic-catenary-placement-in-the-tsc/#findComment-22272 Share on other sites More sharing options...
