Hello good evening, after several days I have thought about it and I have decided to put the automatic placement of the CR160 Spain Renfe catenary on it, but I don't know how to do it, it is that when placing the catenary it expands and with it the wire of Catenary, well, I don't know how to do that, I guess it's not a lua script, right?

[Sjef61 2,302]

No, you have to do it with 3 blueprints
At first you need a working model of a complete portal and a wire.



Workflow:



And give the model contact point.

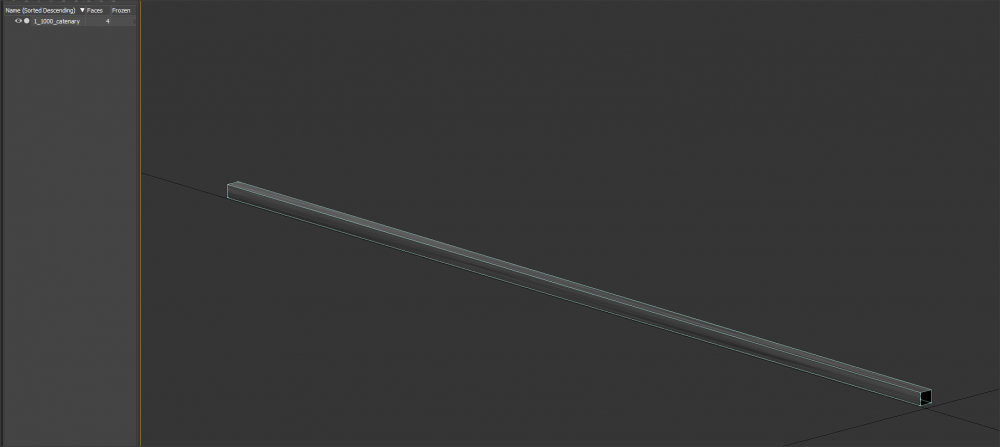

Make a wire



Export both models to IGS

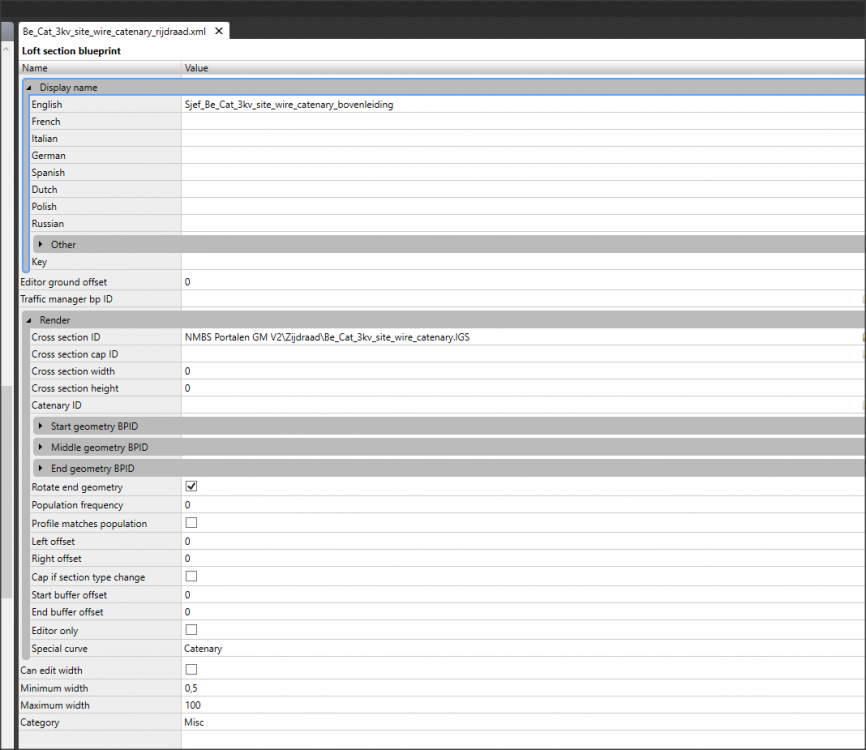

Make a Blueprint of the wire





Make a blueprint of the gantry model

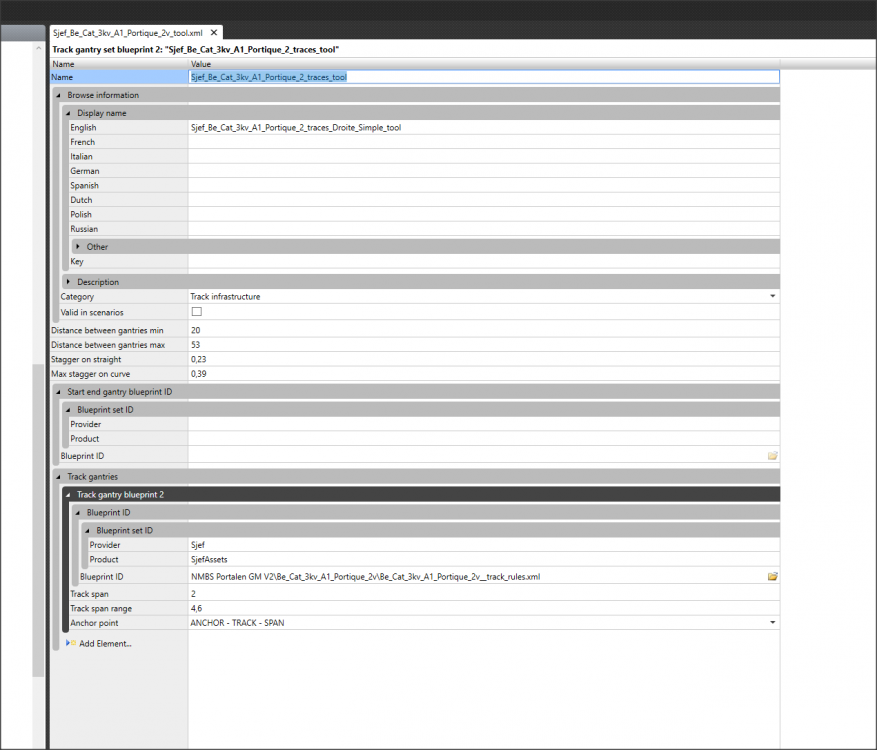

Then you can make a placing tool Blueprint





[Ter160 4]

The catenary wire after having added the two wires to the catenary modeled, exported and as well as its 3 blueprints, is it placed automatically as well as the union or removal of the wire between anchor points with a yellow circle that appears in the TS ?
